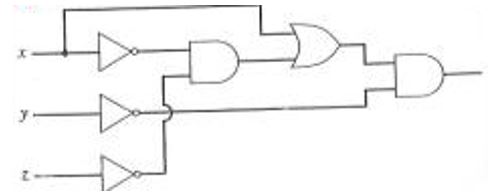

Find the Boolean expression and logic table for the following combinatorial circuit.
1 is true, 0 is false.
x | y | z | x ∨ 1 | ~y | z ∧ 0 | ~y ∨(z ∧ 0) | (x ∨ 1) ∧ [~y ∨ (z ∧ 0)] | ~{(x ∨ 1) ∧ [~y ∨ (z ∧ 0)]} |
1 | 1 | 1 | ||||||
1 | 1 | 0 | ||||||
1 | 0 | 1 | ||||||
1 | 0 | 0 | ||||||
0 | 1 | 1 | ||||||
0 | 1 | 0 | ||||||
0 | 0 | 1 | ||||||
0 | 0 | 0 |
